Air
Wearable and portable dry-EEG device optimised to monitor basic cognitive and emotional states in real-world applications.
Wearable and portable dry-EEG device

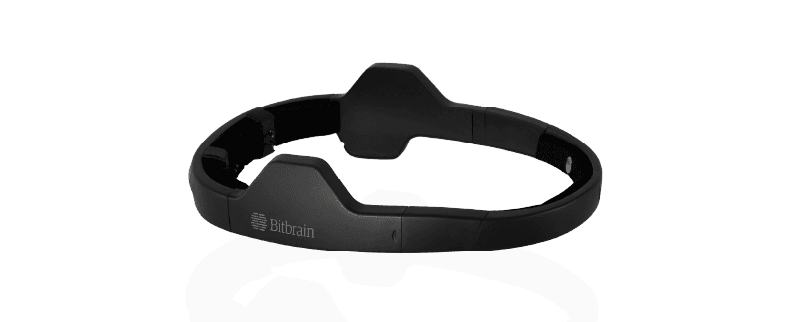

Air is a wearable and portable dry EEG device designed for real-world applications that require great comfort and unobtrusiveness for the user, as well as an agile set up and outstanding signal quality for the researcher. Developed with with 8 dry electrodes over specific brain areas (pre-frontal and occipital), it is optimised for the basic estimation of emotional and cognitive states. Its high-performance active shielding and stable mechanical design provide outstanding robustness and EEG signal quality, even with movement or during long recording periods.
Owing to its exceptional usability, this dry-EEG can be easily self-placed in less than 2 minutes by the final user or, assisted by either technical or non-technical experts. This feature, in combination with the great comfort and reliability, is opening the door to the developing of real-world neurotechnology applications.
Air comes with Bitbrain Software Kit for EEG signal acquisition, processing and programming, which has a large compatibility with real-time I/O and third-party data processing (LSL, Matlab, Python, BCI2000, OpenVibe, etc). Also, by acquiring the Human Behaviour Research Lab, it can be performed a seamless synchronisation with other human monitoring technologies such as ExG, GSR, eye-trackers, indoor positioning system, among many others.
I want to use Air for
Real-world research
Carry out human behaviour research in real-world scenarios and configurations with ecology and reliability.
Real-life applications
Develop new brain-tech products or services with the most accessible EEG hardware.
Brain-computer interfaces
Advance the frontier of interaction with reliable brain-tech usable by everybody, anywhere at anytime.
Main features
Wearable and portable
Ultralight design with flexible arcs and adjustments to ensure great comfort. Bluetooth streaming and on-board SD storage.
Outstanding usability
Quick and easy set up by non-technical experts or the final user, almost anywhere and under any circumstance.
Optimised EEG sensor placement
Layout optimised for pre-frontal alpha asymmetry, occipital alpha, visual P300 and others.
Reliable dry-EEG monitoring
High-quality EEG that records with a resolution of 24 bits at 256Hz for 8+ hours thanks to active shielding with stable sensor contacts.
Practical technology
Easy to transport and store without maintenance or expenses on consumables.
High software compatibility
Intuitive software suite for users or SDK for programmers, and great compatibility with Matlab, Python, etc.

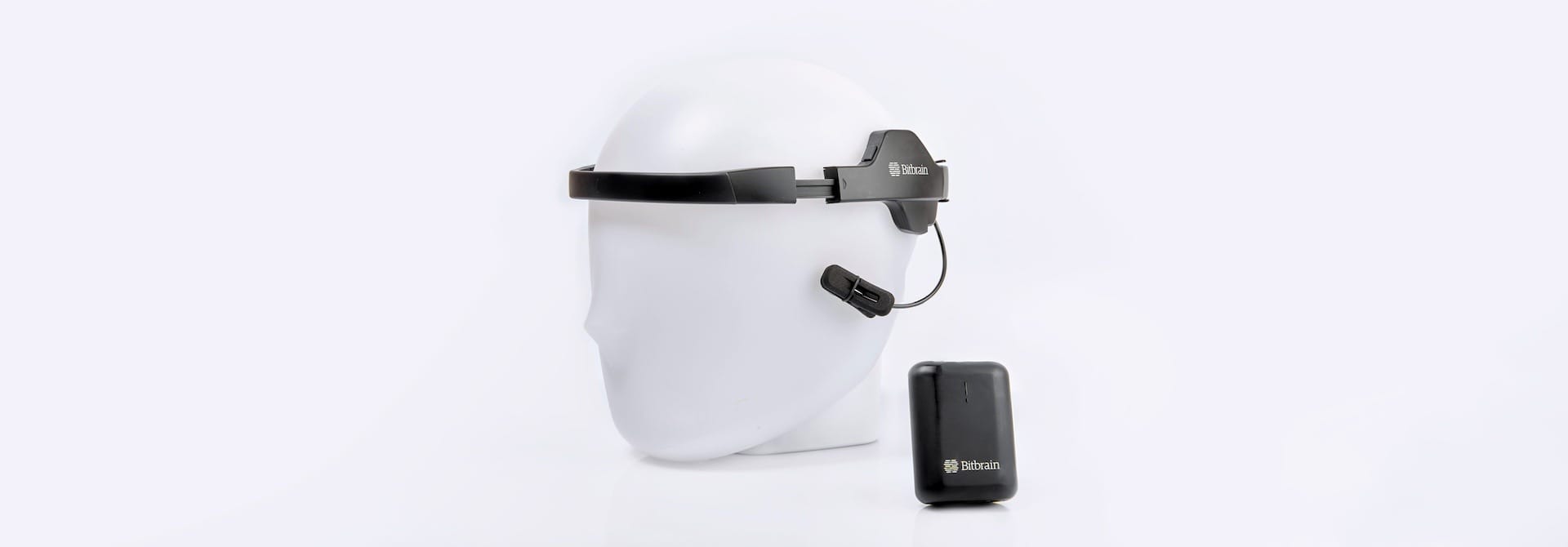

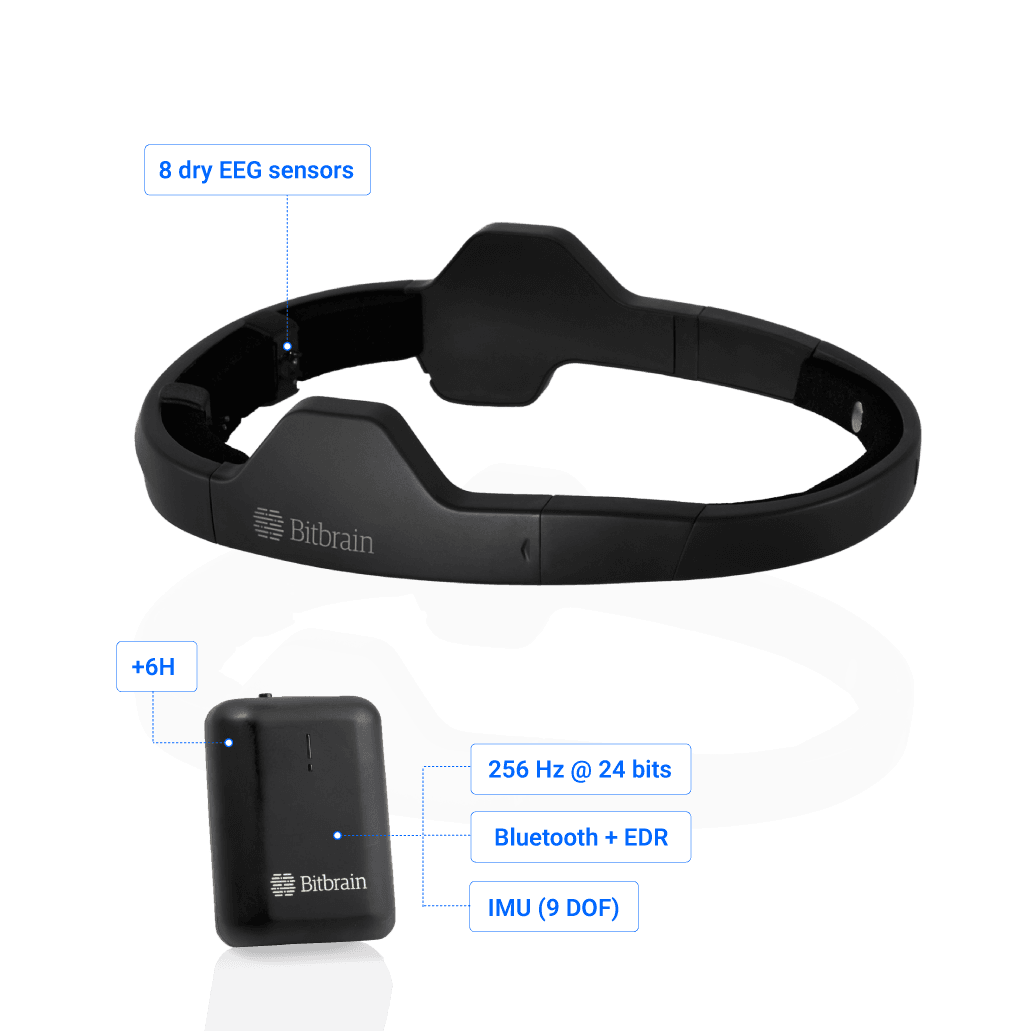

Main components

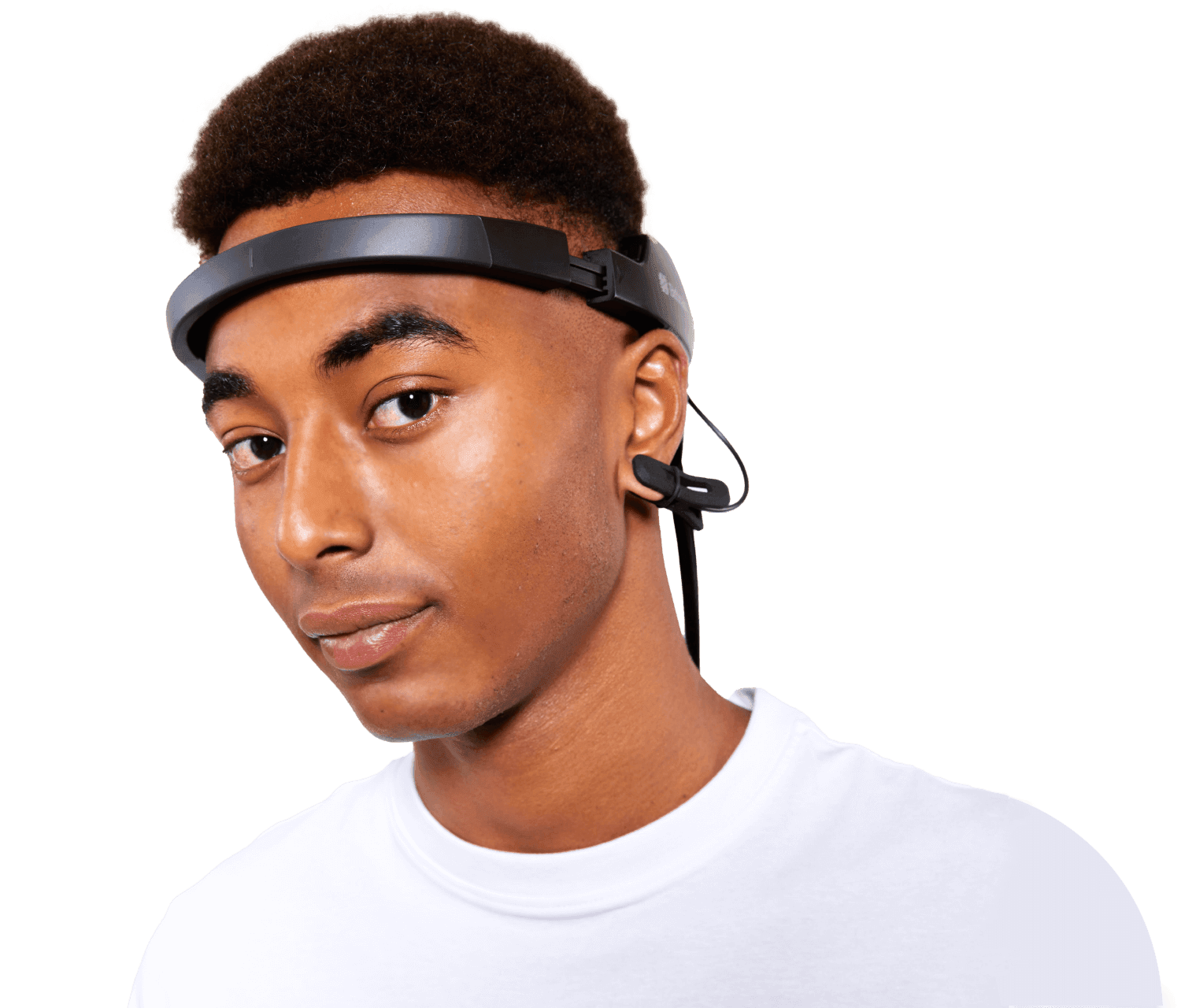

EEG Headset
Light (130g) and flexible headset design that adapts to each head morphology (85 perc global population). It has 8 dry-EEG sensors with mechanical designs that reduce contact impedances and guarantee stable contacts, as well as an active shielding to maximise SNR.

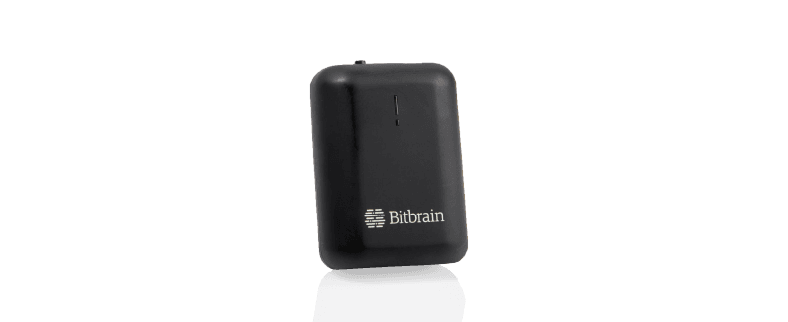

EEG amplifier
Mobile, small and light (125gr) amplifier that records the EEG channels with a resolution of 24 bits at 256 Hz. It has an internal IMU (9 DOF) and online relative impedance control. With microSD recording or Bluetooth connectivity, a 10+ metre range, and up to 8+ hours continuous recording.
How to use
Use case: Seat - Neuroconfigurator
How to use it

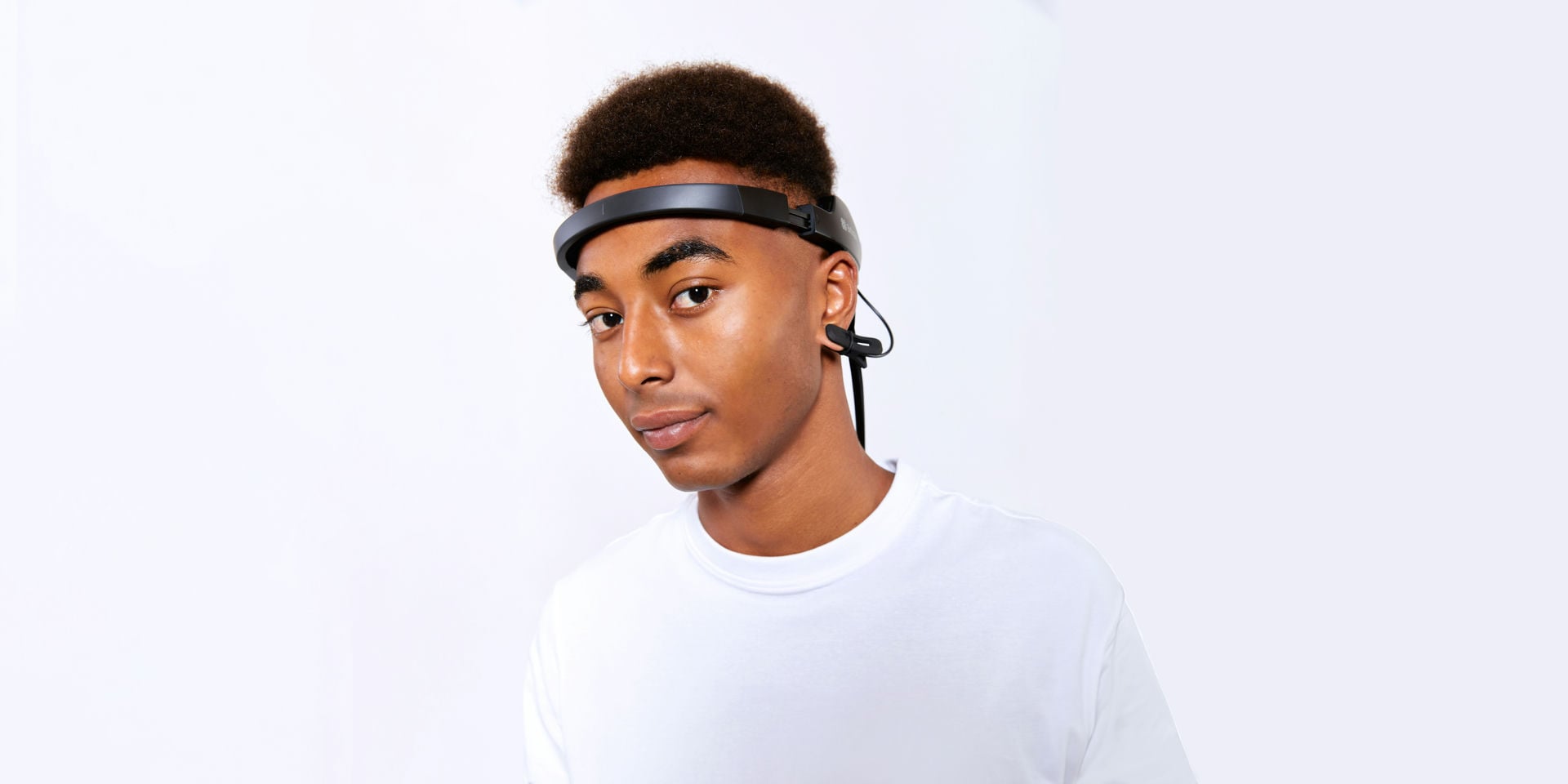

Clean, quick and easy set up by non-technical personnel in just a few minutes. This dry-EEG systems does not require expenses on consumables (jars of gels, syringes, shampoo, etc.), and there are no additional maintenance costs. It comes with an intuitive, powerful software platform to collect data with the help of visual cues to assure quality montage and monitoring.

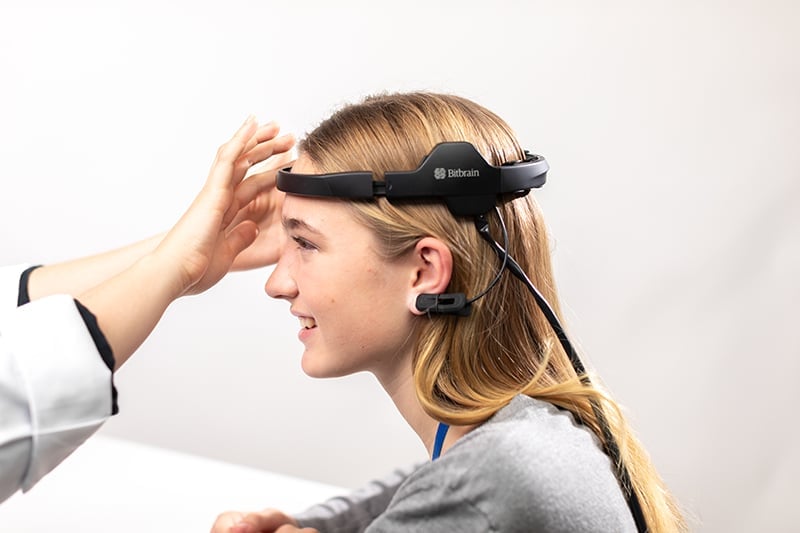

- Preparation: Connect the EEG to the amplifier, open the side strips and place the EEG on the head, aligning the central mark with the nose. Then slide it back to the most prominent zone of the head. Place the clip on the left ear lobe.
- Set up: Wait 10 seconds and move the sensors that are not green yet to ensure they are in contact with the scalp. Repeat until there is good signal quality in all the sensors.
- Test: Blink, bite, close your eyes, move your arms and walk around to check that the EEG is not affected.
- Recording: Now you are ready to record you EEG data and to export it afterwards.
- Clean and storage: Clean the sensors with wet wipes and store Air in its own case.
Technical specifications
Hardware
| Sensors and headset | |
|---|---|

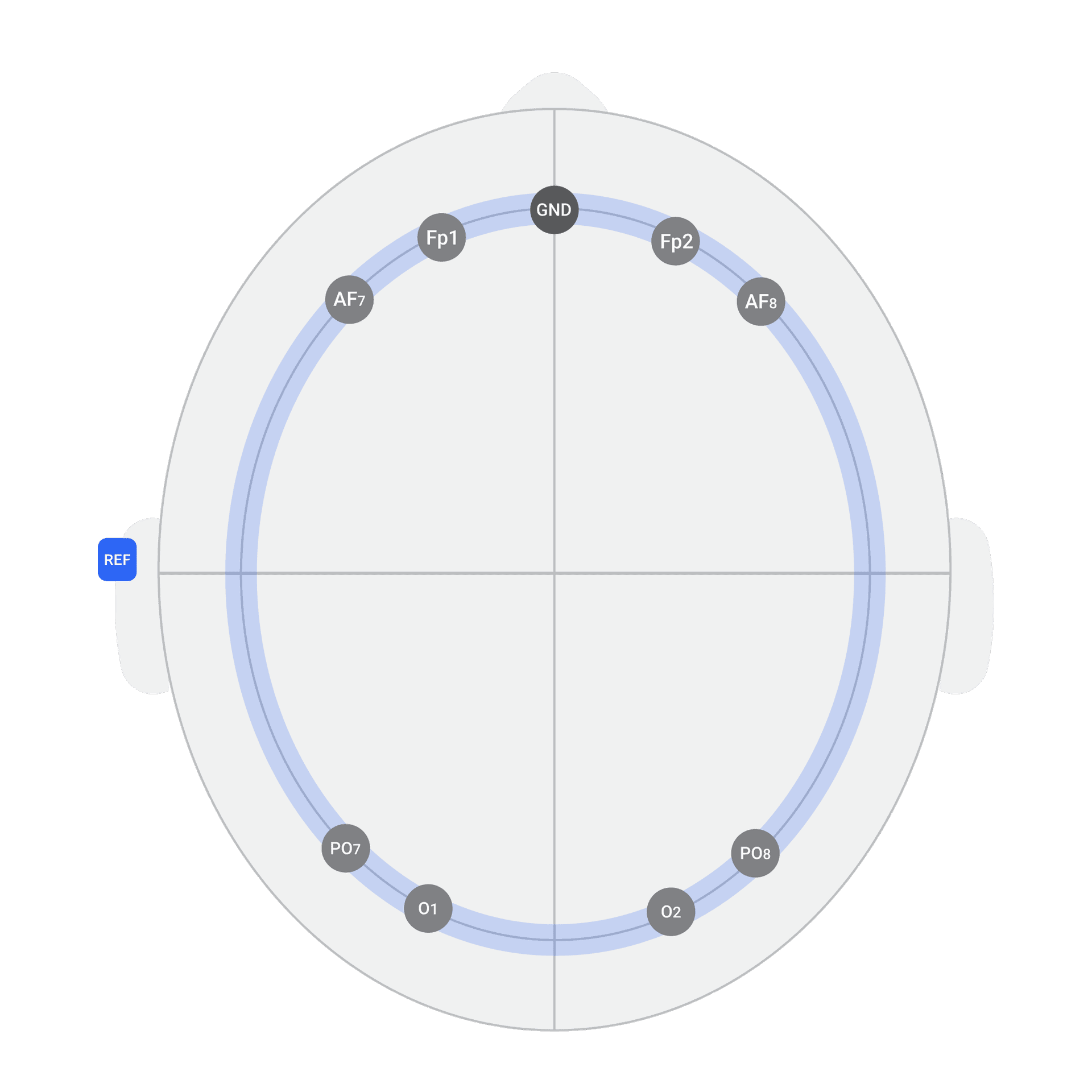

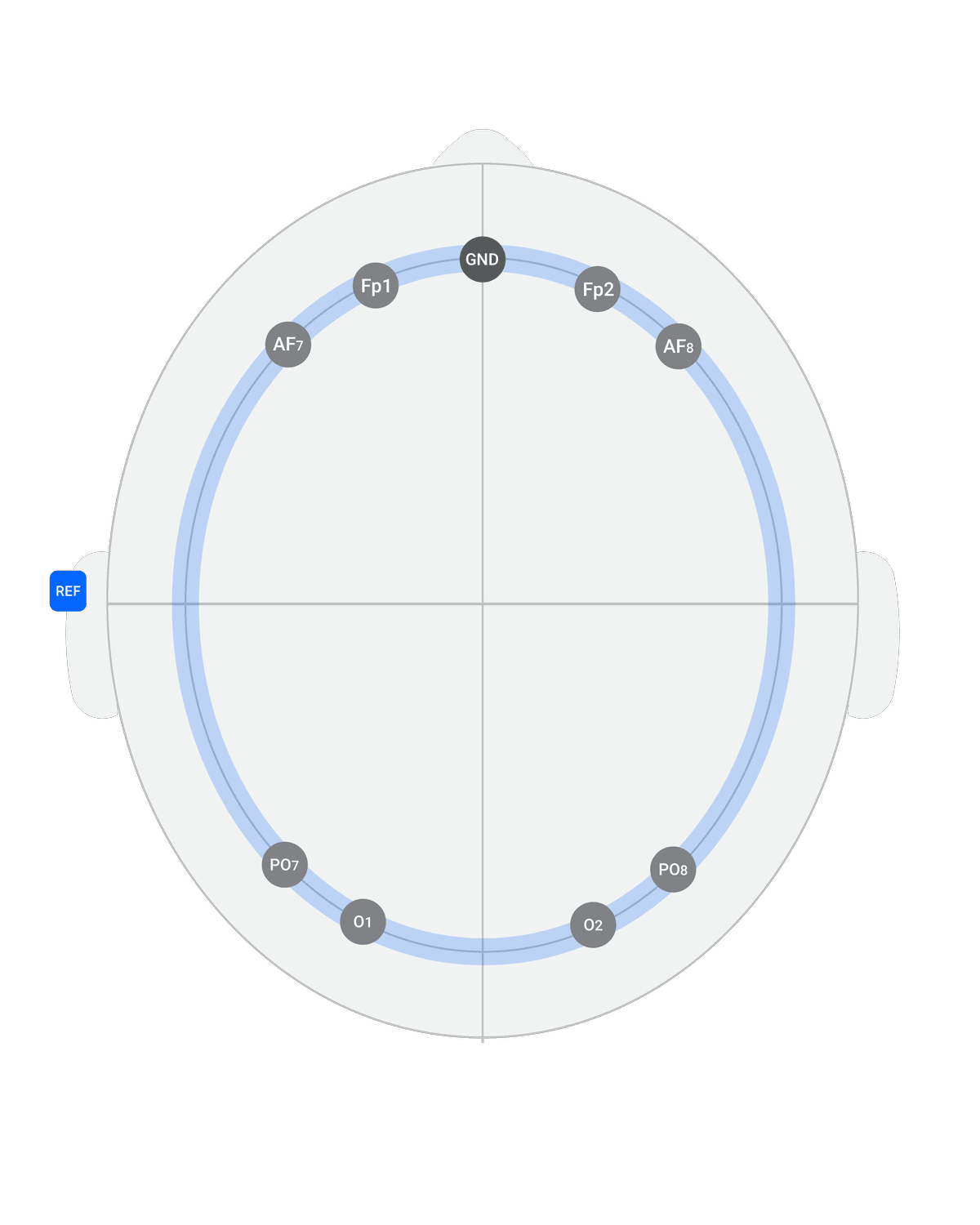

| EEG channels | 8 x EEG (Fp1, Fp2, AF7, AF8, PO7, PO8, O1, O2), REF (A1) and DRL (Fpz) |
| Type of sensors/ electronics | EEG dry sensors with active shielding and optimized DRL |
| Head perimeter | 53cm - 61cm |
| Wireless amplifier | |
|---|---|
| Sampling rate/resolution | 256 SPS at 24 bits |
| Bandwidth | DC – 40Hz (3º order LPF) |
| Online/real-time impedance check | Yes (relative contact impedance) |
| Integrated sensors | Integrated IMU (9 axis): accelerometer, gyroscope and magnetometer |
| Other inputs | 1 x Digital input (1 bit), 1 x optical trigger |
| Input range and noise | ±100 mV, < 1 µVRMS (0.5 – 30Hz) @256Hz |
| CMRR / Input impedance | >100 dB @50Hz, > 50 GΩ |
| Data backup | Yes (removable µSD card. Max 8GB, class ≥10 ) |
| Data streaming and store | |
|---|---|
| Data transmission and range | Bluetooth 2.1 + EDR with 10 meters in direct sight |
| Data files | CSV |
| Power | |
|---|---|
| Battery | Rechargeable lipo battery. Charging time <3h |
| Autonomy | > 8 h |
| General | |
|---|---|
| Weight | Headset: 130g, Amplifier: 82g |
| Maintenance | Wipes moistened in tap water. |
| Warranty | 2 years |
| Certifications | CE and CB, with EN 60950, EN 55032, EN 55024 |
Software
| Bitbrain Software Kit (included with equipment) | |
|---|---|
| Bitbrain real-time SDK | In C/C++ for Windows and Linux. |
| Bitbrain data acquisition and visualization suite | Live visualization, streaming or SD recording, data export in CSV and raw data visualization. |
| Third parties and real-timeI/O | LabStreamingLayer LSL compatibility (Matlab, Python, BCI2000, OpenVibe, NeuroPype, etc). |
| Third parties data processing | Matlab (EEGLAB, FieldTrip, BCILAB,etc), Python (MNE, etc) and more. |
| Bitbrain software platforms (optional) | |
|---|---|
| Bitbrain Human Behaviour Research Lab | Practical research platform for experiment design and data acquisition with 30+ sensor modalities seamlessly synchronized, and analysis with a wide range of emotional and cognitive biometrics available. |
| Bitbrain Cognitive Training Lab | Software platform for QEEG and cognitive training for health and wellness. |
| Bitbrain Programming Platform | Multimodal real-time neuroscience or brain-computer interface development. |
What is included
Bundle includes
The devices are easily stored and transported within a suitcase. Technology is easily cleaned with wipes moistoned with water.
- EEG headset
- EEG amplifier
- Power supply
- Storage base
- Suitcase
- Instructions
- Bitbrain Software Kit
Support
Basic Support is included during the lifetime of the product.
- Email support
- Technical assistance
- Knowledge base
Optional Premium support is also available.

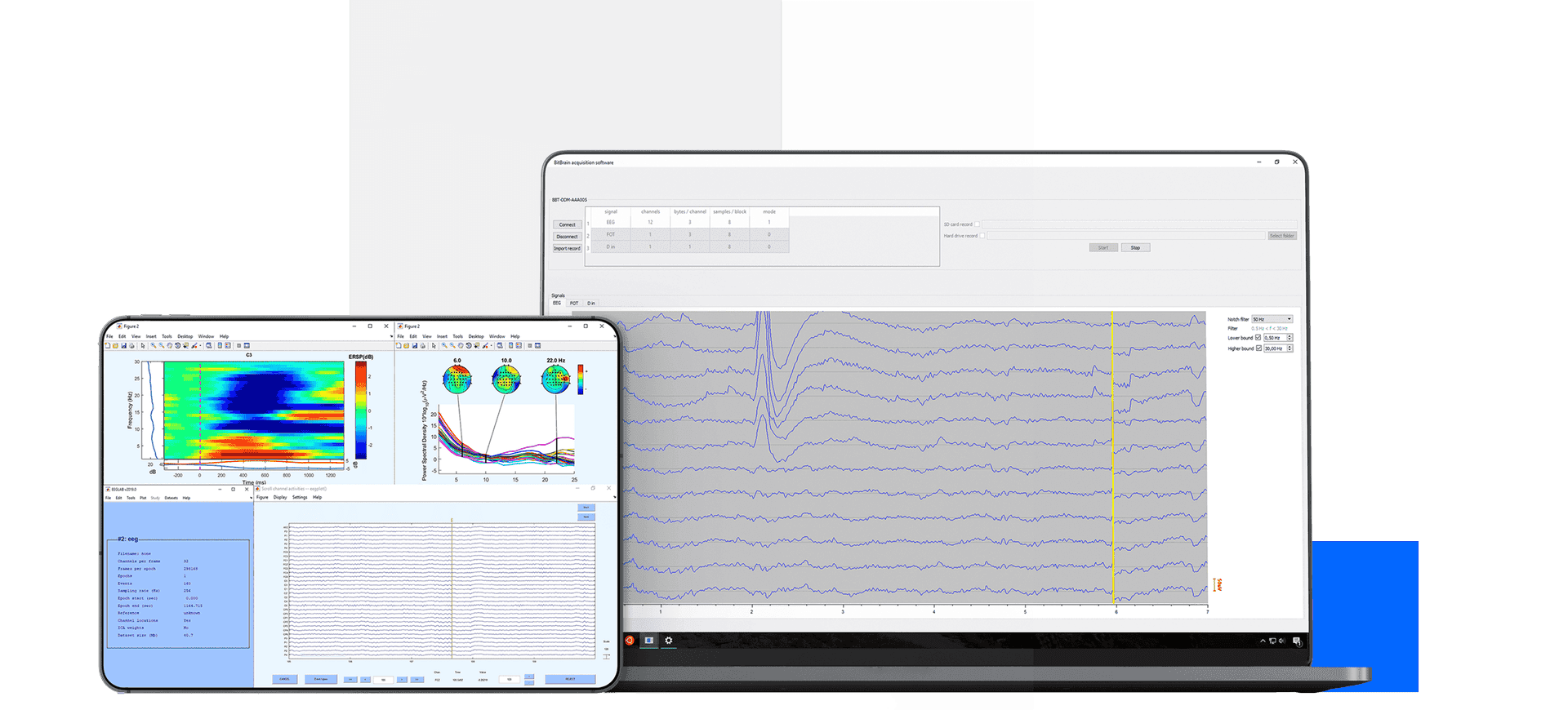

Bitbrain Software Kit
Software for EEG signal acquisition, processing and programming, with large compatibility and with real-time I/O and third-party data processing.
Simplified data acquisition and setup
Collect data with the help of visual cues to assure montage and quality monitoring.
Flexible programming
Easy to use development with versatile SDK to address a wide variety of applications.
Powerful real-time applications
Using real-time LSL third-party platforms such as BCI2000 or OpenVibe among others.
In-depth data analysis
Compatible with advanced platforms such as Matlab, EEGLab or MNE among others.
