Ikon

Ikon

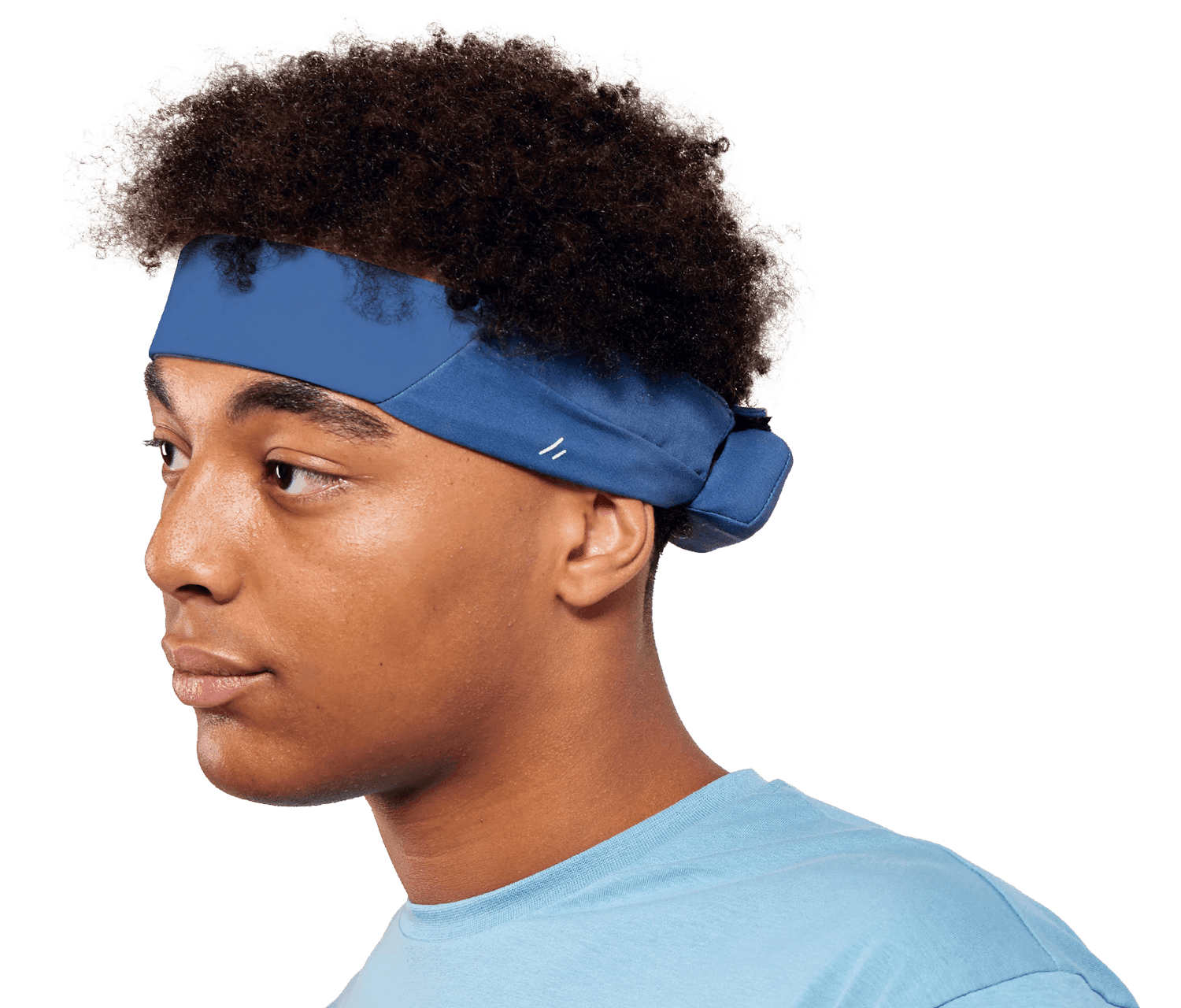

The first wearable EEG device made with smart textiles. Engineered for brain monitoring through frontal sensors, it empowers neuroscience research in real-world environments. Ikon is designed for use anytime, anywhere, and by anyone.

Patent pending
Introduction
IntroductionFeaturesResearchComponentsHow to useDownloadsSpecificationsWhat is included

Textile EEG Family: Wearable textile garment EEG

Ikon is an innovation in neurotechnology, being the first device on the market with dry textile sensors that deliver high-quality EEG signal. Its self-managed design removes the need for expert supervision, while its ergonomic structure ensures comfortable and accessible use for individuals as young as six.

Formulated to bring research into real-world settings, Ikon guarantees accuracy and measurement consistency, delivering optimal performance with every use. It features active shielding technology with an optimized DRL to reduce artifacts and enhance signal-to-noise ratio, capturing detailed and effective EEG signals at 24-bit resolution and 256 Hz.

Read the research paper

I want to use Ikon for

Real-world research

Conduct human behavior research with precision and reliability in real-world scenarios and diverse settings.

Real-life applications

Streamline data collection for clinical and health research with a high-performance, user-friendly EEG device.

Brain-computer interfaces

Push the boundaries of interaction with dependable neurotechnology that anyone can use, anywhere, anytime.

Main features

Self-managed technology

Effortlessly conduct EEG research anywhere with self- administered technology that requires no expert supervision.

Comfortable dry textile sensors

The first device on the market with textile sensors - no need for electrolytic substances like gels saline or water.

Tested in clinical populations

Demonstrated a 90% success rate in clinical studies involving over 250 participants.

Medical standard

Designed in accordance with ISO 13485, with medical CE and FDA clearance anticipated for 2025.

Connectivity and storage

Bluetooth LE real-time EEG streaming compatible with LSL and other software.

Battery

9+ hours in BLE streaming with local SD.

Reliable

Active shielding with optimized DRL to improve SNR and reduce artifacts.

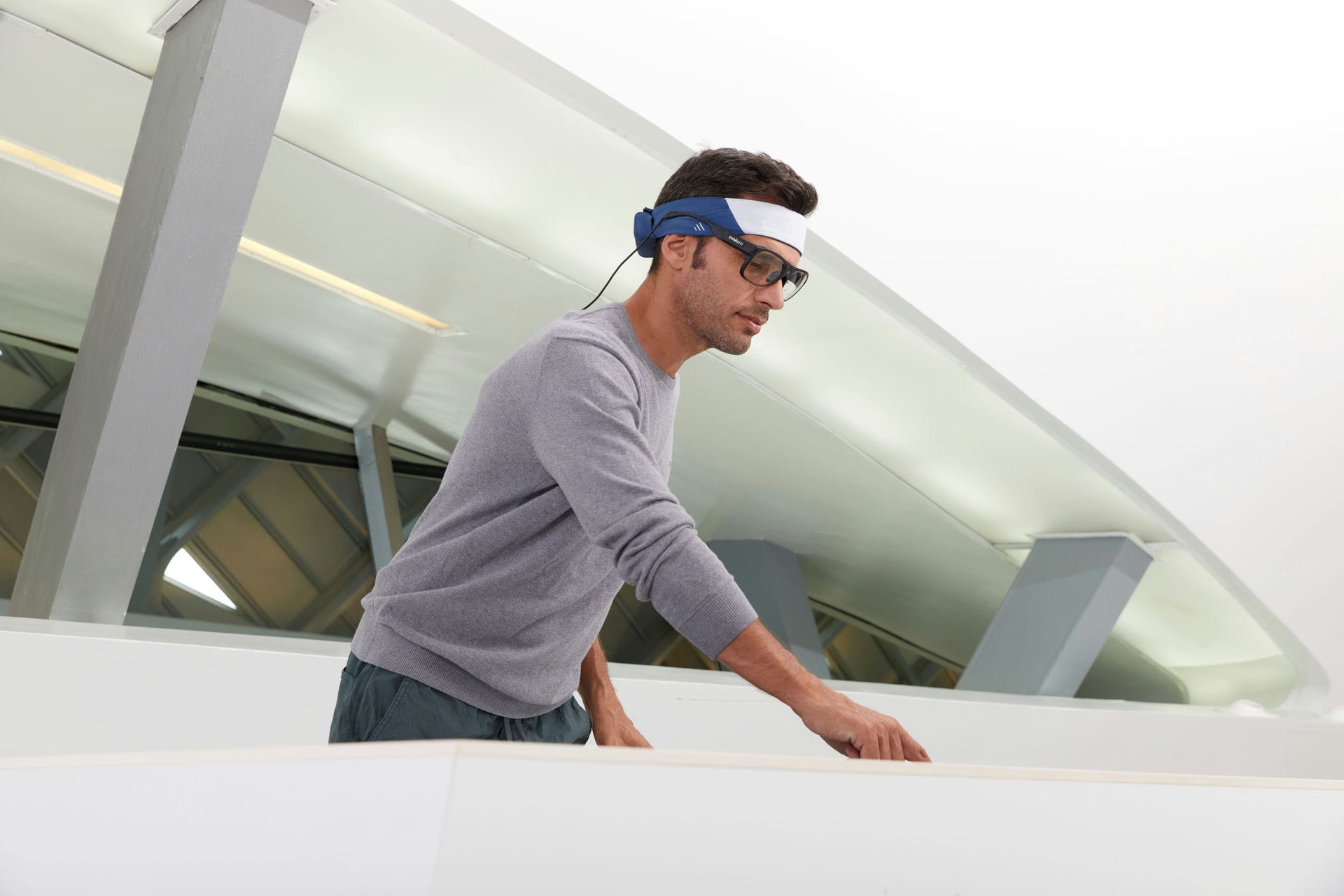

Man wearing Bitbrain's Ikon headband while performing a task

Applied neuroscience research

Ikon in a scientific environment
Scalable data collection
Ideal for large scale data collection in everyday environments, paving the way for breakthrough insights and faster EEG biomarker discovery.
More information

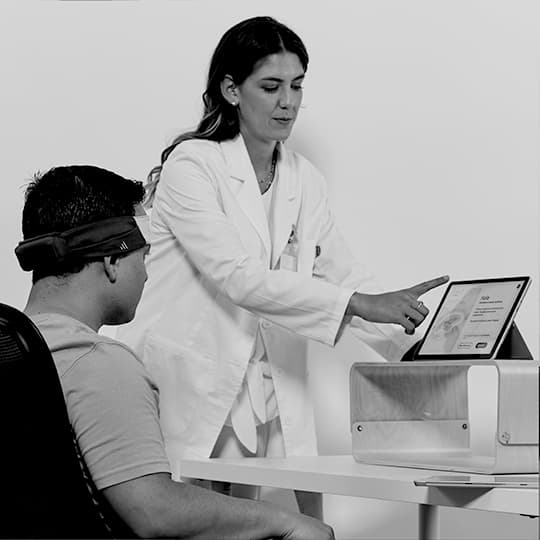

Ikon research with patients
Advancing precision medicine
Solution for advancing research in precision medicine and creating customized treatments, enabling tailored interventions based on individual needs.
More information

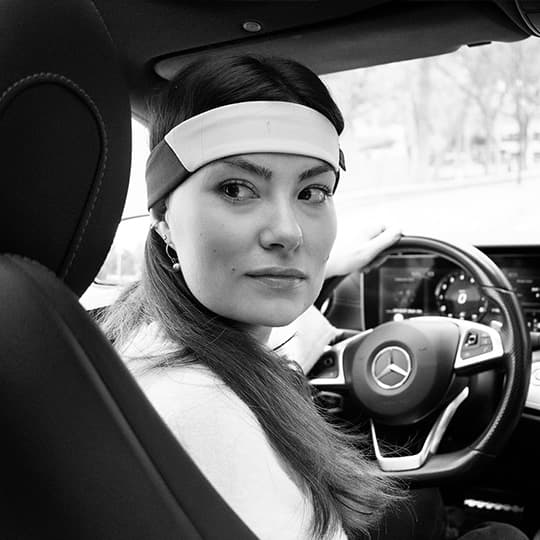

Ikon automotive research
Research in real-world settings
Conduct research in real-world scenarios such as education, business or automotive technology.
More information
Ikon multimodal research
Multimodal research integration
Combined with other biosensors, it enables seamless multimodal research across various settings, from e-sports and psychology to pharmacological studies.
More information

Main components

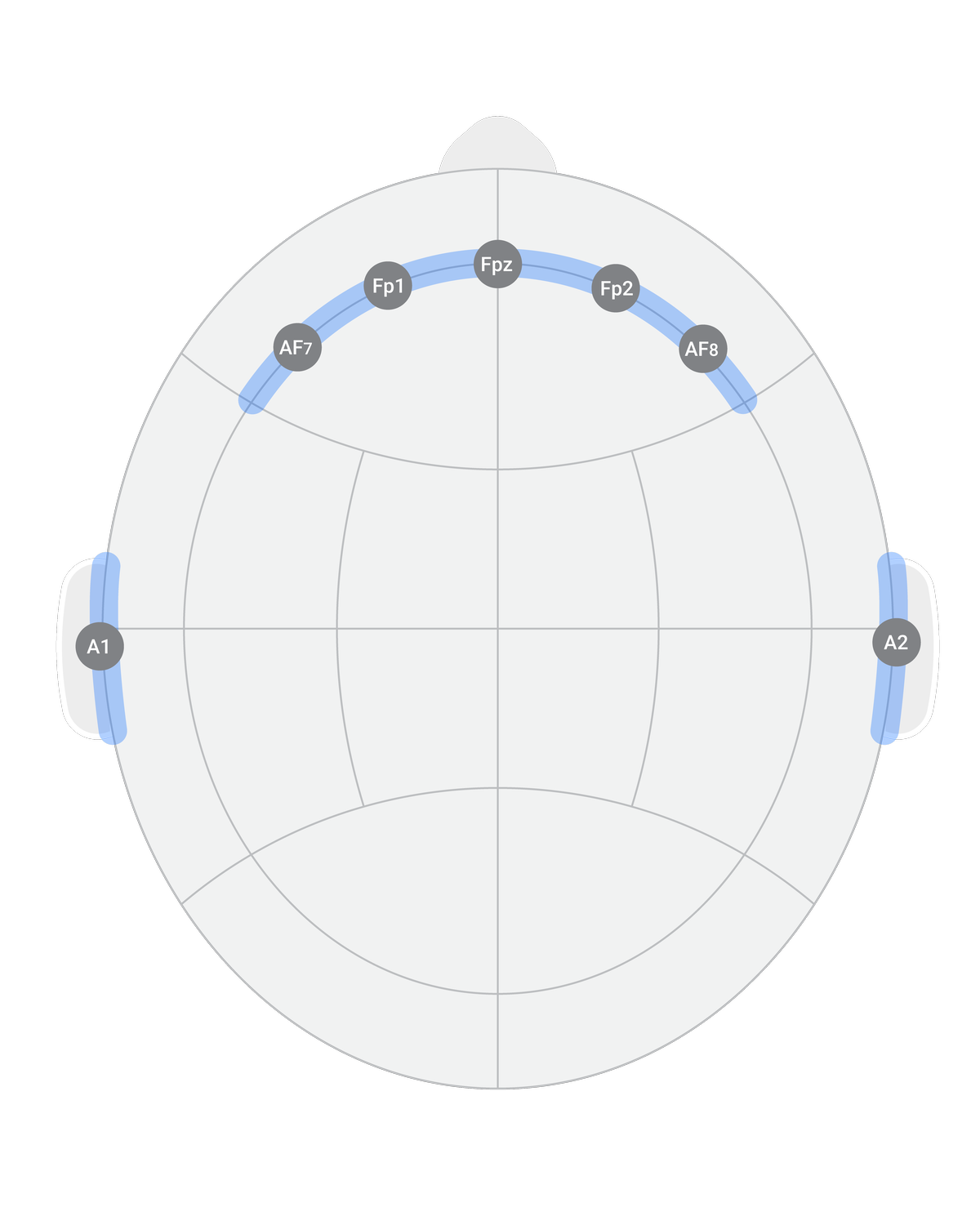

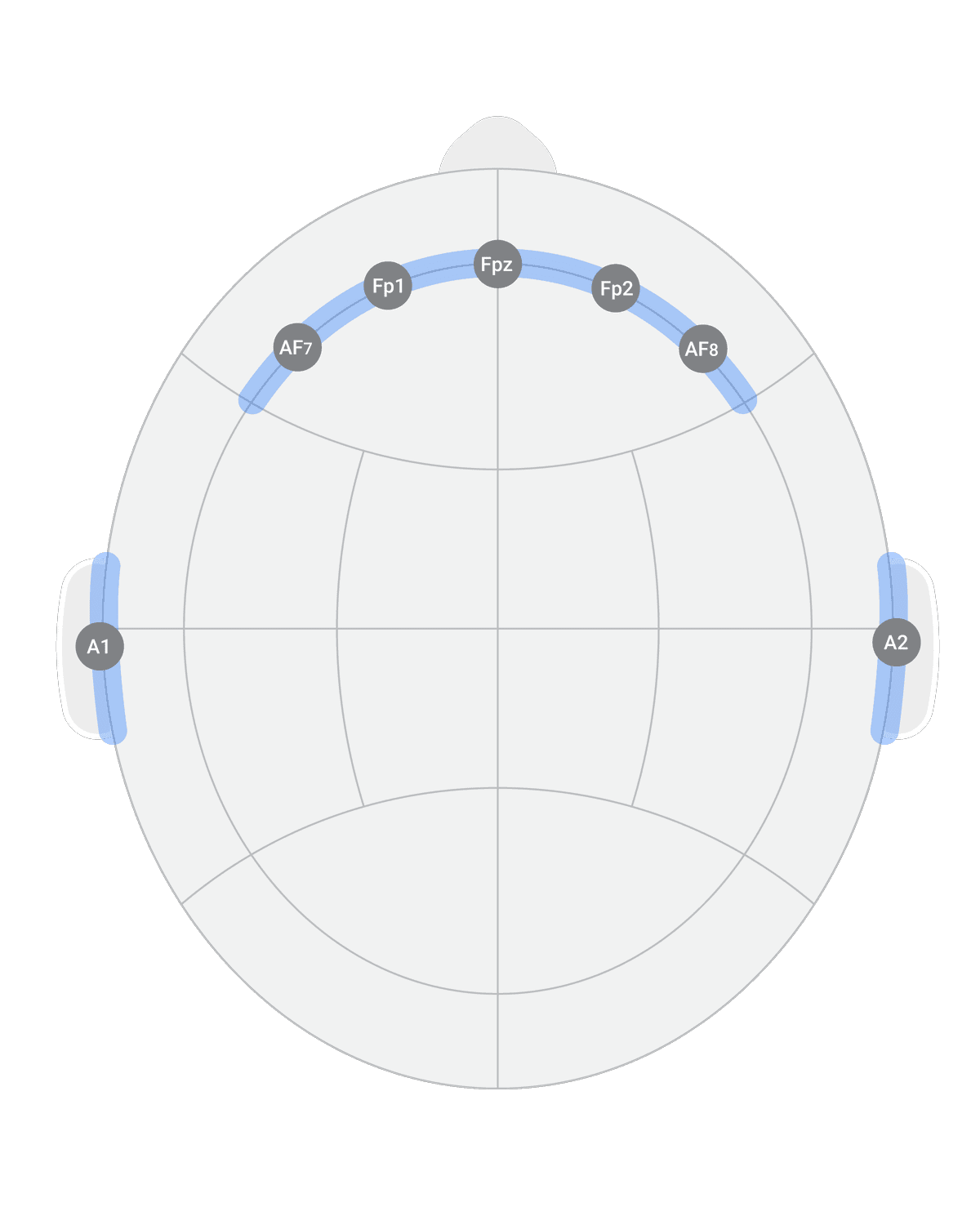

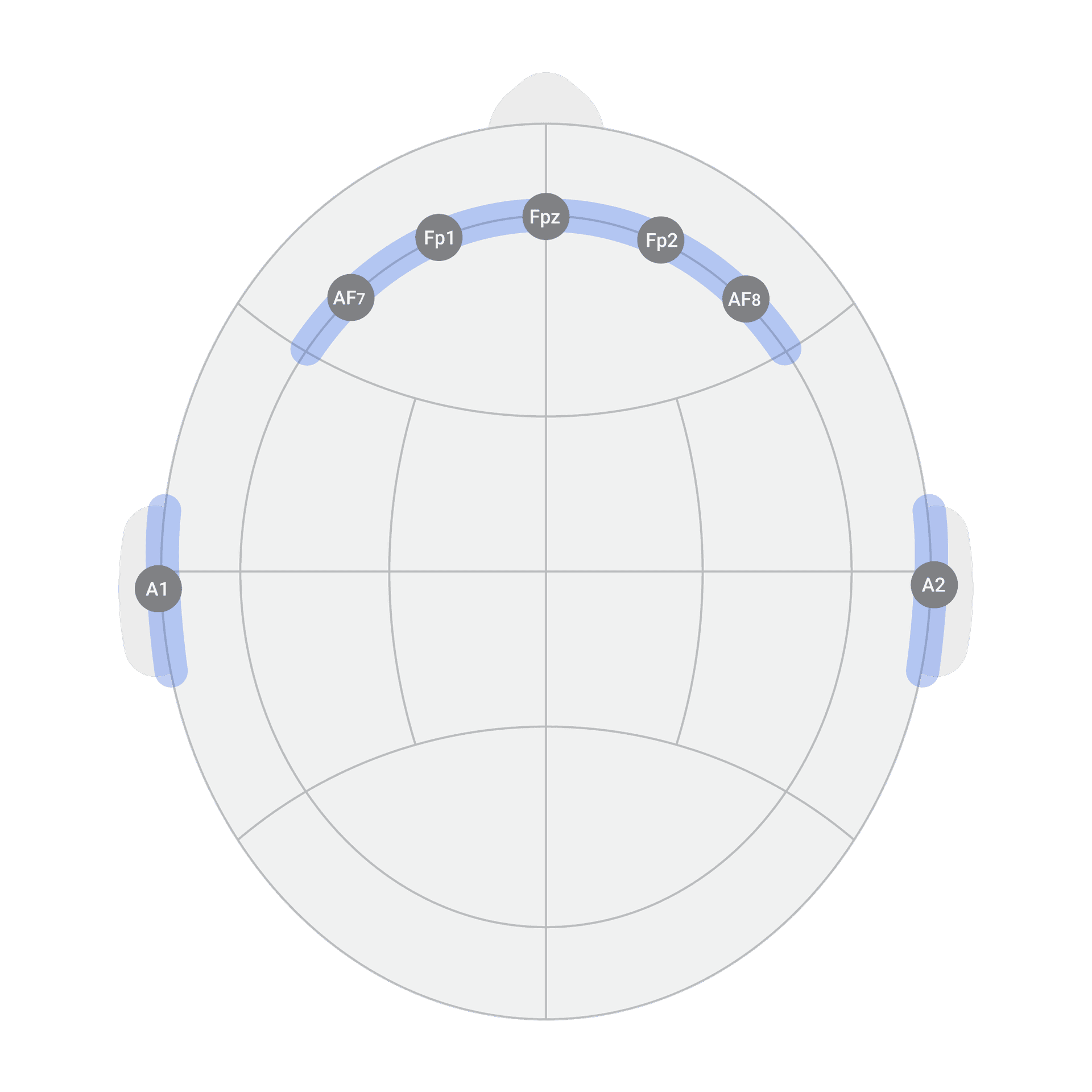

Ikon Layout
Download Ikon layout

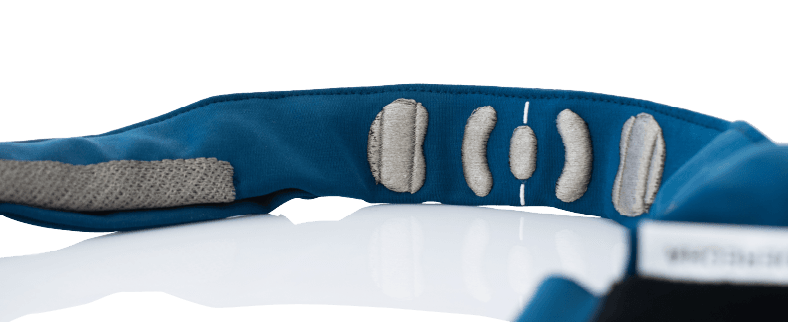

Frontal Sensors

Sensor placement over the prefrontal area captures precise brain signals in diverse settings.

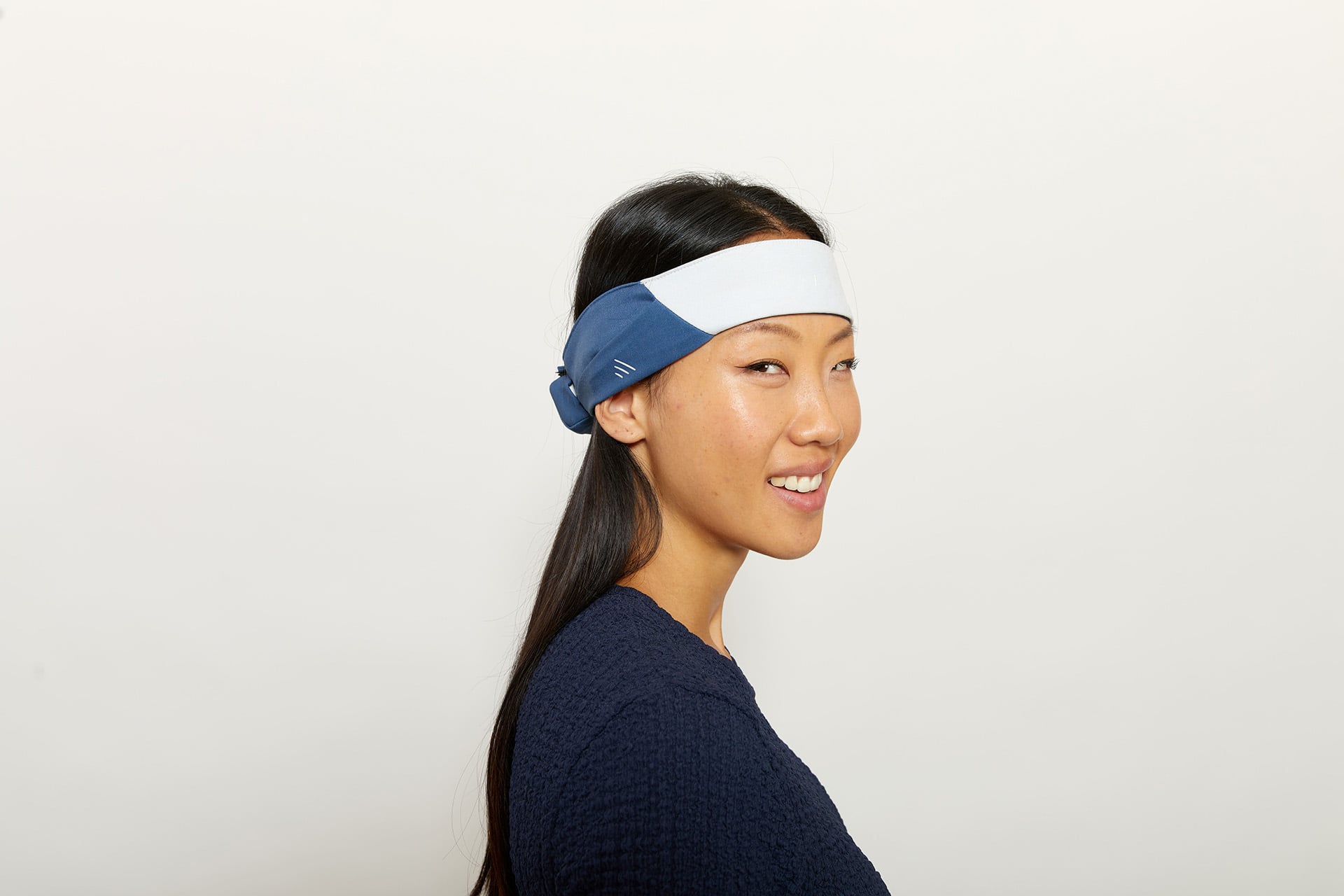

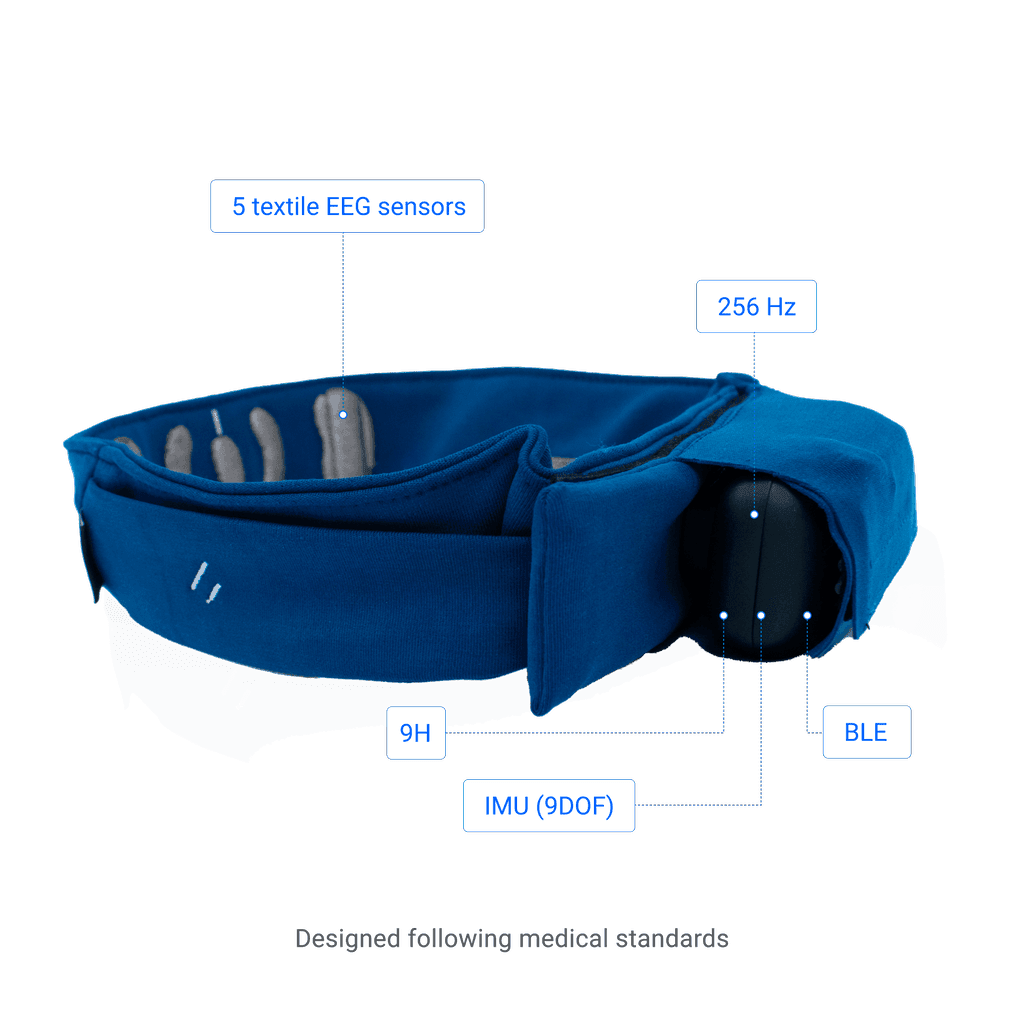

High-Performance EEG Device

A wearable, ultra-light (60g) EEG band with quick and easy setup, perfect for real-world applications. Delivers reliable EEG monitoring for over 9 continuous hours.

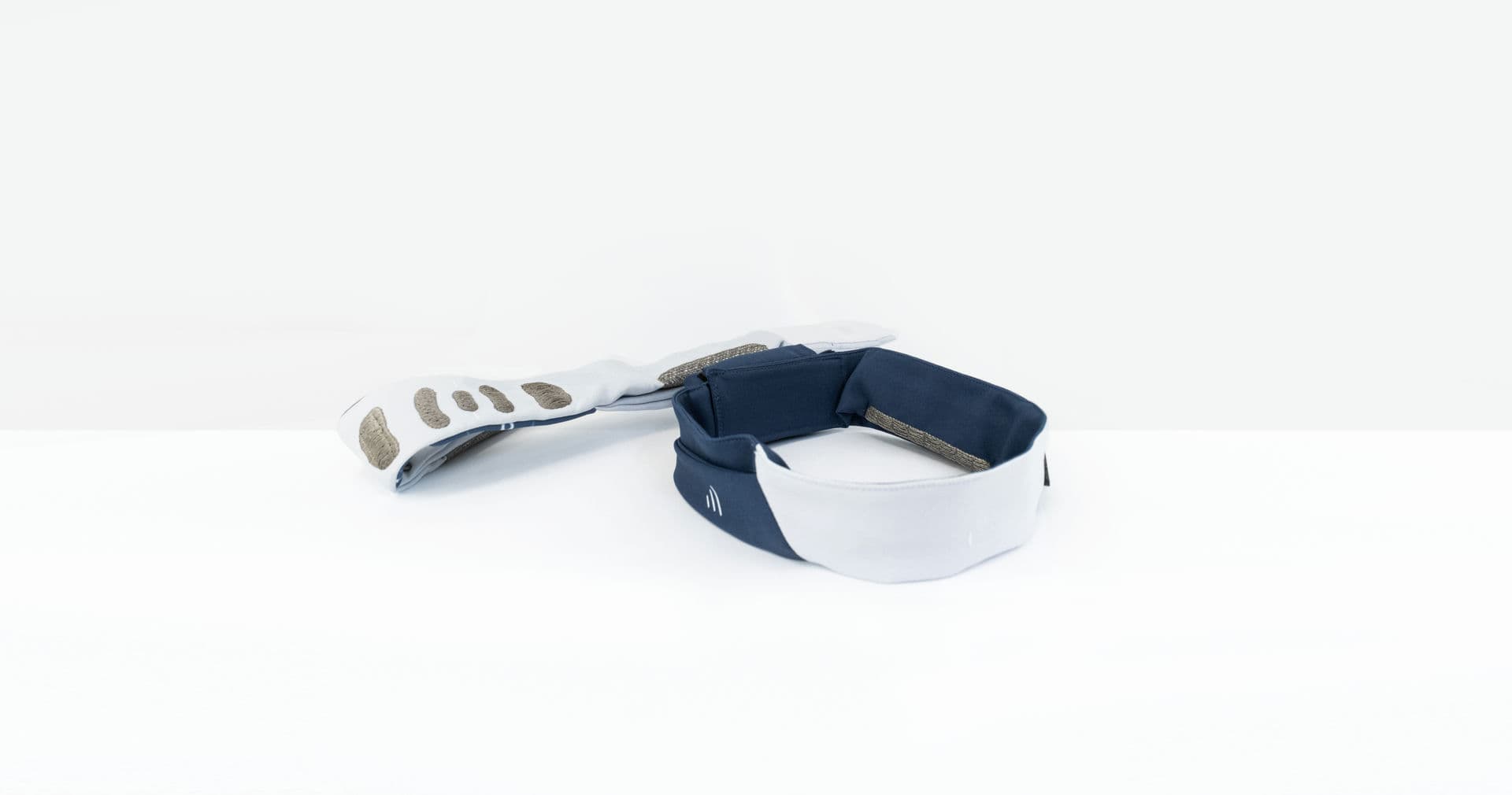

Superior Signal Quality

Equipped with 7 textile electrodes (5 channels + REF + GND) and active shielding technology with optimized DRL to enhance signal-to-noise ratio (SNR) and minimize artifacts.

Practical technology

Designed for convenient use, this device is washable, easy to transport, store and reuse, providing a practical, low-maintenance solution.

How to use

Ikon setup tutorial, adults

Learn how to set up the Ikon EEG in just a few minutes.

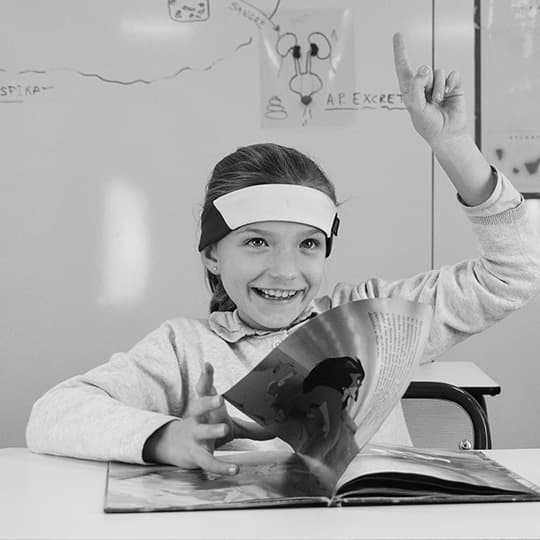

Ikon setup tutorial, kids

Technical specifications

Hardware

Sensors and headset
EEG channelsFp1, Fp2, Af7, Af8, A1, A2. Ground in Fpz.
Amplifer REF is in FP1; A1 and A2 used for linked ear re-referencing.
Type of sensors / electronicsEEG dry sensors with active shielding and optimized DRL
Head perimeter52-72 cm

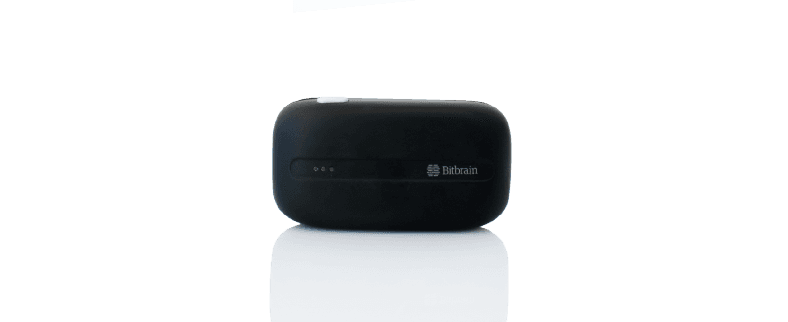

Wireless Amplifier
Sampling rate/resolution256 SPS at 24 bits
BandwidthDC - 40Hz
Online/real-time impedance checkyes
Integrated sensorsIntegrated IMU (9 axis): accelerometer, gyroscope and magnetometer
Input range and noise±100 mV, < 1 μVRMS (0.5 - 30 Hz) @ 256Hz
CMRR/Input impedance> 100 dB @ 50Hx, >50 GΩ
Data streaming and store
Data transmission and rangeLow energy Bluetooth 4.2 + EDR with 10 meters in direct sight
Data backup/filesDirect transfer to tablet/phone + data backup on internal SD card/CSV (max 8GB. Class≥10)
Power
BatteryRechargable lipo battery. Charging time <3h
Autonomy>9h
General
WeightAmplifier: 60g, Headset: 70g
Warranty2 years
CertificationsCE (Directive 2014/53) and FCC (part 15)

Software

Bitbrain software kit (included with equipment)
Bitbrain real-time SDKIn C/C++ for Windows and Linux
Bitbrain data acquisition and visualization suiteLive visualization, streaming or SD recording, data export in CVS and raw data visualization
Third parties real-time I/OAll compatible with LabStreamingLayer LSL (BCI2000, OpenVibe, NeuroPype, etc)
Third parties data processingMatlab (EEGLAB, FieldTrip, BCILAB, etc), Python (MNE, etc) and more
Bitbrain software platforms (optional)
Bitbrain Viewer SoftwareSoftware for data visualization and recording, with large compatibility with real-time I/O and data processing third parties.
Bitbrain Software Development KitSoftware kit consisting of different scripts that allow communication and control of the hardware used. It is a starting point for the development of brain-computer interface applications.
Request pricing

What is included

Bundle includes

The device is easy to transport and store without maintenance.

  • EEG headset and amplifier
  • Power supply
  • Storage base
  • Instructions
  • Pack of wet wipes
  • Bitbrain Software Kit
Support

Basic Support is included during the lifetime of the product.

  • Email support
  • Technical assistance
  • Knowledge base
