Ikon Sleep

EEG designed for sleep. Engineered for research.

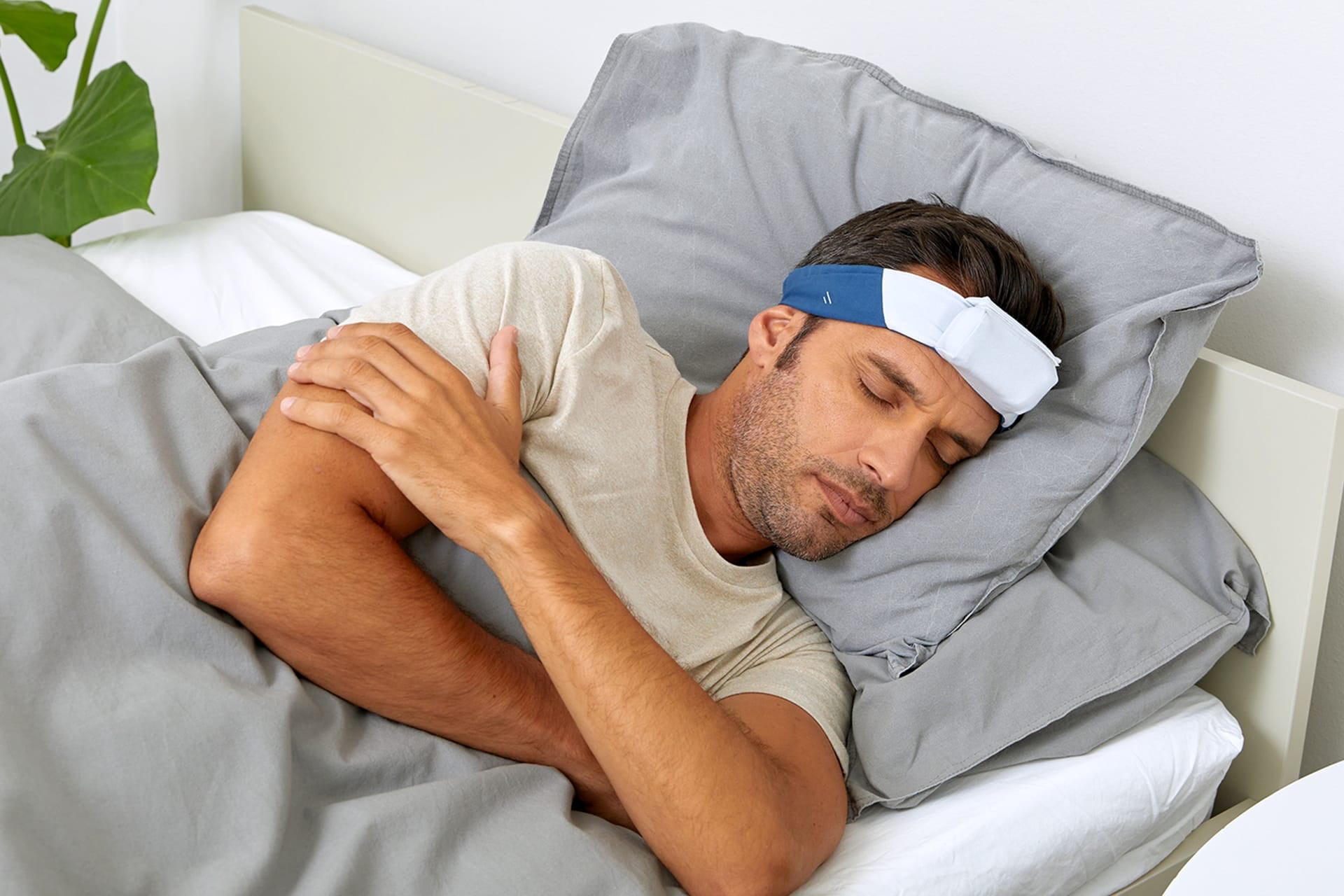

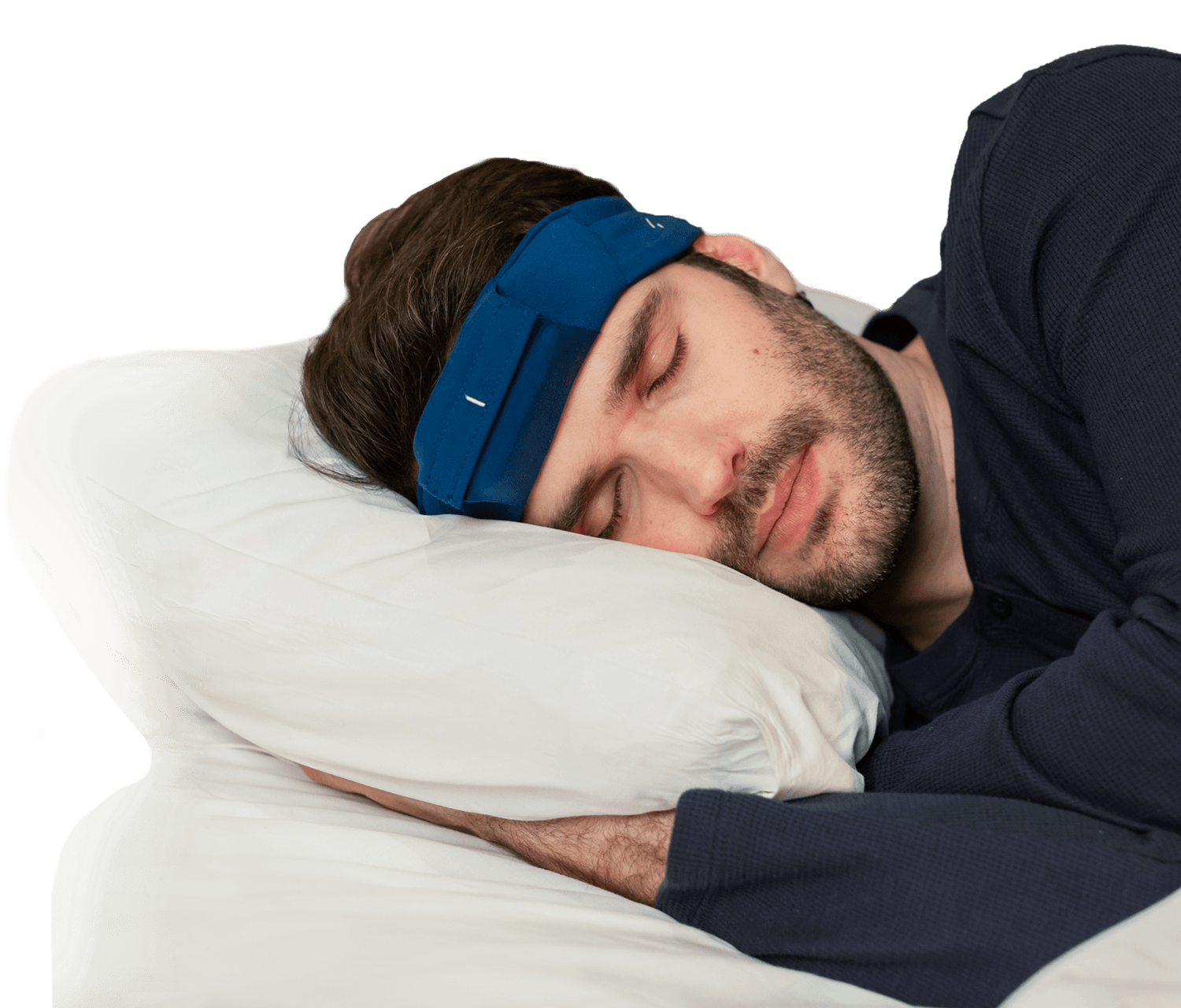

Sleep EEG with 2 pre-gelled frontal sensors and integrated PPG for brain and cardiac monitoring. Combines ease of use and comfort. Designed following medical standards for reliable sleep research anytime, anywhere, by anyone.

We use our own and third-party cookies to analyse the use of the website and to show you personalised advertising. You can set your preferences about these cookies <lnk>here</lnk> or use the buttons below.

We need your consent

If you have any questions about this product, do not hesitate to contact us.

Get more information

LinkedIn

Instagram

Twitter

Facebook

YouTube

You can unsubscribe from these communications at any time. For more information on how to unsubscribe, our privacy practices, and how we are committed to protecting and respecting your privacy, please review our Privacy Policy.

Contact us

How can we help you?

For more information about Ikon Sleep, we invite you to download:

Ikon Sleep EEG

Download a sample of data recorded with Ikon Sleep

Visit our scientific publications section to learn about the application of Bitbrain technology in different research domains.

Ikon Sleep includes SennsLite for raw data recording, with LSL compatibility, and Bitbrain devices synchronization, allowing for multimodal recording, with export in CSV and EDF formats.

Lightweight EEG amplifier with PPG, motion tracking, BLE wireless transmission, and internal data storage for reliable and flexible recordings.

EEG Amplifier

Ikon Sleep ensures comfort throughout sleep while recording high-quality EEG. It minimizes artifacts and improves SNR through active shielding and optimized DRL.

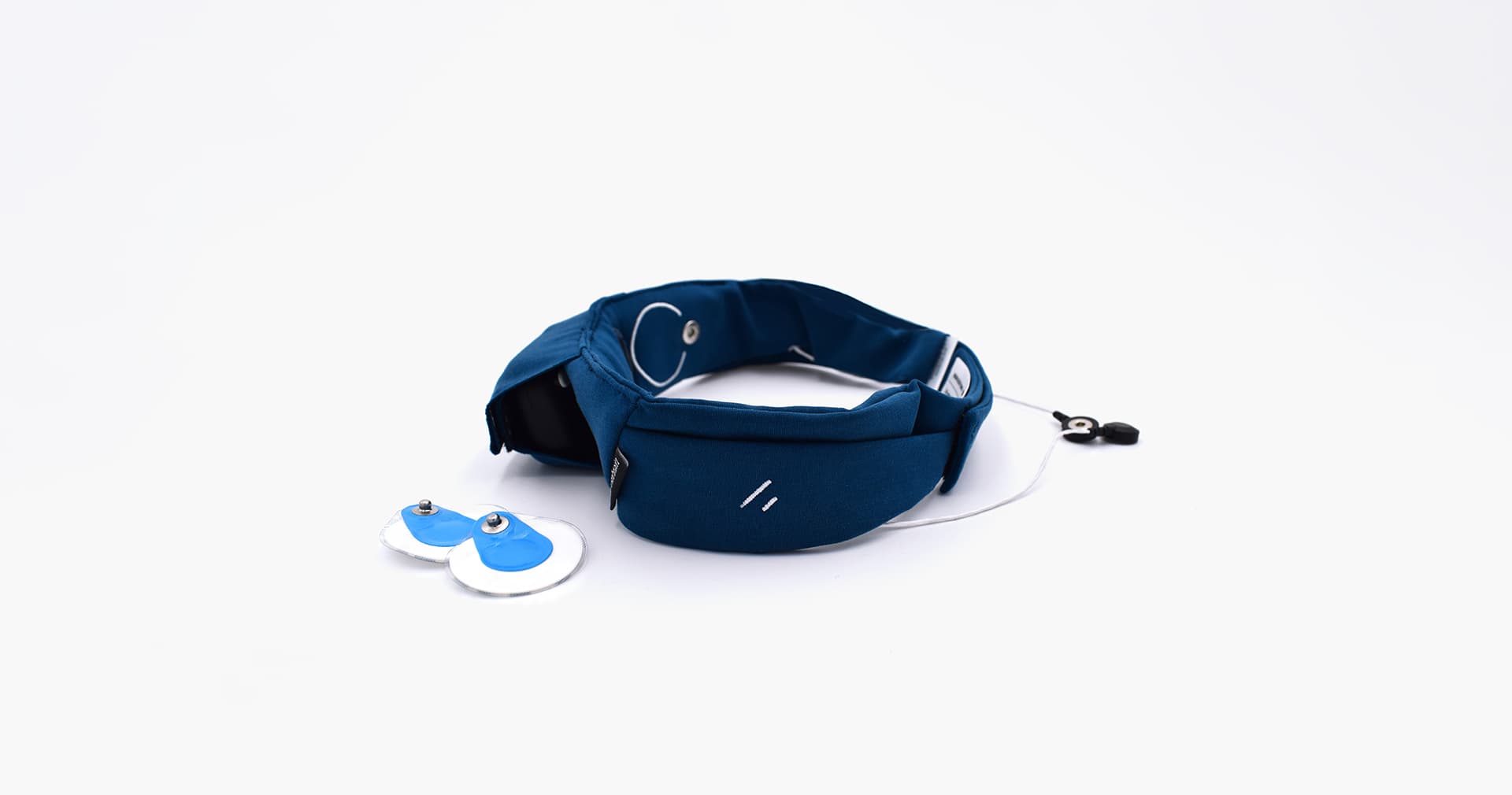

Ikon Sleep Band

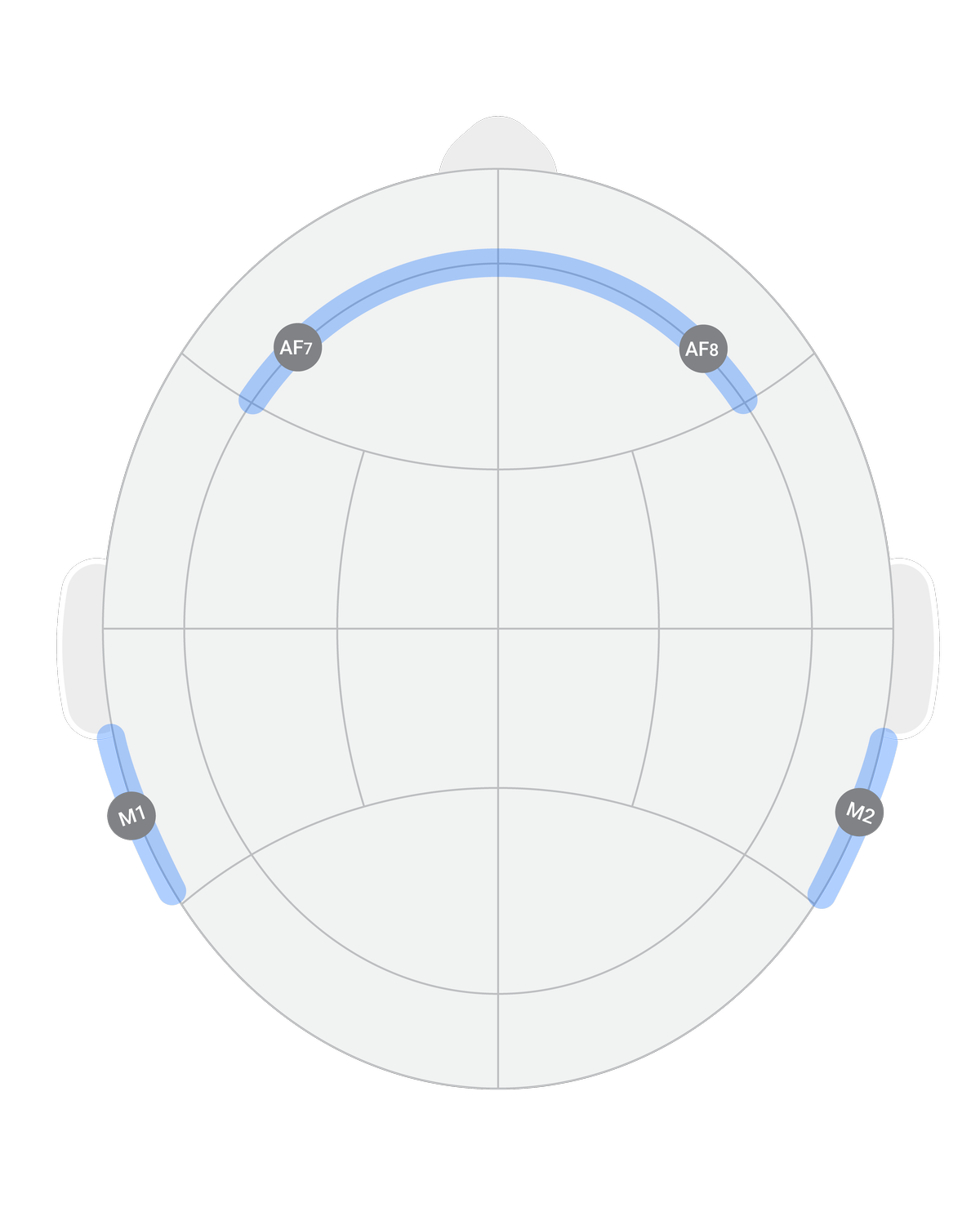

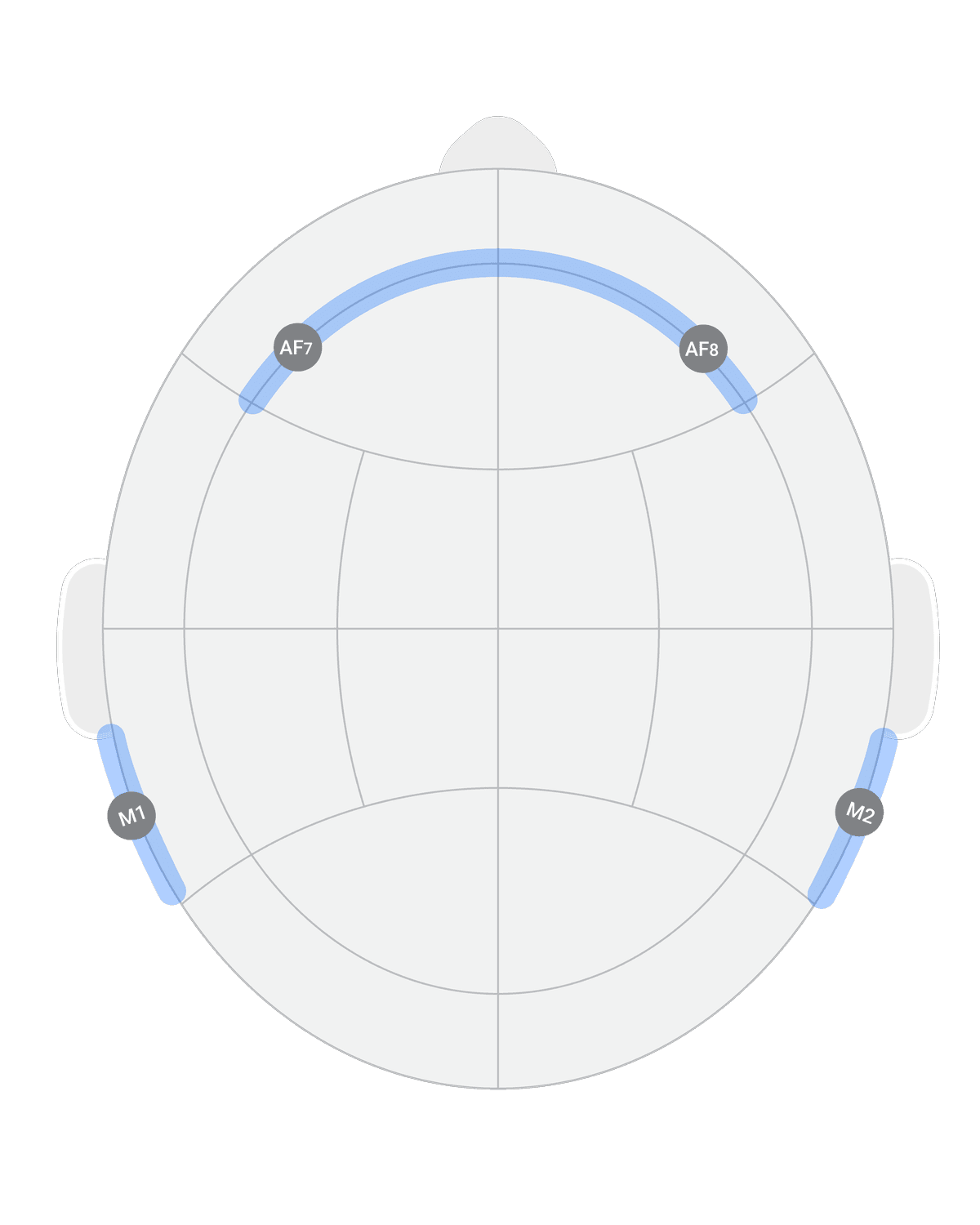

2x EEG (AF7 and AF8) + GND (M2) + REF (M1)

PPG + Integrated IMU (9 axis): Accelerometer, gyroscope and magnetometer

Bluetooth Low Energy 5.0 2,4 GHz + EDR with 10 meters in direct sight

Rechargeable LiPo battery; charging time < 3 h

Complete your research

SDK in C for maximum performance and portability enabling Python integration. Compatible with Windows OS and Linux (x86).

C SDK

Multimodal platform for human behavioral research, providing cognitive, emotional, and behavioral biometrics. An advancement in neuroscience research, integrating Bitbrain EEG and biosignal hardware with advanced software for synchronized data acquisition, analysis, and visualization, fully compatible with Tobii eye-tracking systems. Available configurations include: Bitbrain Diadem 12ch EEG, Bitbrain Ring Biosignal GSR/BVP, Bitbrain SennsLab and SennsMetrics Software, Tobii Pro Spark, Tobii Pro Glasses

Human Behaviour Research Lab

User-friendly recording application designed for remote data collection outside the lab. Available for Windows (Android coming soon), it features an intuitive interface that enables non-technical users to record and save sessions autonomously.

Ikon App

Synchronization software for experimental design and data collection, supporting 35+ seamlessly synchronized sensor modalities including EEG, eye-tracking, and other biosignals. Compatible with third-party softwares via TCP/IP protocol. Data export in CSV.

SennsLab

Real-time visualization, data recording, and synchronization across all Bitbrain devices. Compatible with LabStreamingLayer (LSL) for third-party real-time I/O (BCI2000, OpenVibe, NeuroPype, Medusa). Data export in CSV and EDF, compatible with common analysis softwares: Python (MNE, etc), Matlab (EEGLAB, FieldTrip, BCILAB,etc), and more.

SennsLite

Data analysis tool for emotional, cognitive, and behavioral metrics. Data are recorded with SennsLab, processed via SennsCloud, and analyzed and visualized in SennsMetrics.

SennsMetrics

Technical specifications

Downloads

How to use

We invite you to explore our scientific publications section, where you can discover how Bitbrain technology is applied across various research fields.
